Contents

To do

back to top

%-------------------------------------------------------------------
% enter warnings for:
%       attempting to analyze input-output .abf files
%       attempting to analyze noisy data
%       attempting to analyze data that does not follow electrophysio assay

% test fit curve(done 10/6/10)

% create output of stArray into txt file(done 10/6/10)

% create progress bar(done 10/6/10)

% create plots of important data(done 10/7/10)

%-------------------------------------------------------------------

Initialize variables

back to top

%-------------------------------------------------------------------
%create a cell array for each sweep (150 sweeps collected in 10908001)
%and only plot the first 7 ms then find markers

clear all;
close all;
clc;

%initialize progress bar
h = waitbar(0,'Initializing Global waitbar...',...
    'position',[400 100 275 50]);

button = [];
button1 = [];
button2 = [];
button3 = [];
button4 = [];
button5 = [];
button6 = [];


%create a directory of all abf files
directory = dir('*abf');

%initialize counters for figure plots and waitbar
fig = 0;
step = 0;

%-------------------------------------------------------------------

Load data

back to top

%-------------------------------------------------------------------
%read in each experimental data set as waveform data using the abfload
%function
for n = 1:size(directory, 1);

    x = abfload1(directory(n).name);
    x0 = [];
    x1 = [];
    marks = [];

    %create 3D array of translated waveform data [m n l]
    %m=# of samples, n=dimension of samples, l=# of sweeps
    hfcount = 0;
    for k = 1:size(x,3);
          x0(:,1,k) = x(1:700, 1, k);
          x1(:,1,k) = x0(:,1,k) - mean(x0(1:20,1,k));
          x2 = x1(:,:,k);
        %enter a nested function that will iterate through an array of
        %data and position the three markers appropriately
        if k == 1
            [M1, M2, M3] = markers(x2);
            marks(:,1,k) = M1;
            marks(:,2,k) = M2;
            marks(:,3,k) = M3;
        elseif var(x2(1:200)) <= 0.01
            marks(:,1,k) = marks(:,1,k-1);
            marks(:,2,k) = marks(:,2,k-1);
            marks(:,3,k) = marks(:,3,k-1);
            if k < 46 %limit high frequency data point count
                        %because points are set to zero
                hfcount = hfcount+1;
                hf(hfcount) = k;
            end
        else
            [M1, M2, M3] = markers(x2);
            marks(:,1,k) = M1;
            marks(:,2,k) = M2;
            marks(:,3,k) = M3;
        end

    end

    %create time vector for plotting sweeps (only 1st 7ms)
    time = linspace(0,7,700)';

    %user input analysis options
    correct = 0;
    while correct ~= 1

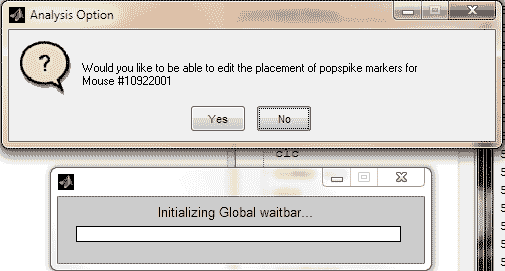

        button = questdlg({['Would you like to be able to edit the ',...
            'placement of popspike markers for '];...
            ['Mouse #', strtok((directory(n).name), '.')]},...
            'Analysis Option', 'Yes', 'No', 'No');

        button = lower(button);

        if strcmp(button, 'yes') || strcmp(button, 'no')
            correct = 1;
        else correct =0;
        end
    end



    %-------------------------------------------------------------------

Display Population Spike Automation

back to top

    %-------------------------------------------------------------------

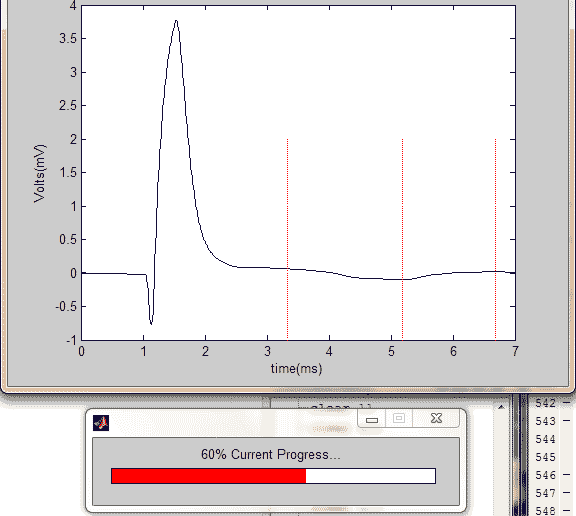

    %plot the markers for each mouse at each sweep
    if strcmp(button, 'yes')

        if isempty(button1)

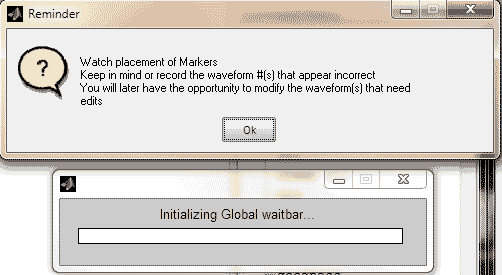

        button1 = questdlg({'Watch placement of Markers';...
            ['Keep in mind or record the waveform #(s) ',...
            'that appear incorrect'];...
            ['You will later have the opportunity to ', ...
            'modify the waveform(s) that need edits']},...
            'Reminder', 'Ok', 'Ok');
        end



        hh = waitbar(0,'Initializing Current progress waitbar...',...
                'position',[400 200 275 50]);

        for i = 1:size(x1,3)
            pic = figure(1);
            wave = x1(:,:,i);
            plot(time',wave); hold on;
            plot(time(marks(2,1,i)), linspace(-1,2), 'r',...
                time(marks(2,2,i)), linspace(-1,2),...
                'r', time(marks(2,3,i)), linspace(-1,2), 'r');
            title({['Mouse #', strtok((directory(n).name), '.')];...
                ['Waveform #', int2str(i)]});
            xlabel('time(ms)');
            ylabel('Volts(mV)');
            hold off;
            pause(.2);
            %update current progress waitbar
            perc = i/size(x1,3);
            waitbar(perc,hh,sprintf('%.0f%% Current Progress...',perc*100))
        end
        close(pic);
        close(hh);



        %-----------------------------------------------------------------

Prompt User to Edit Automated PS

back to top

        %-----------------------------------------------------------------

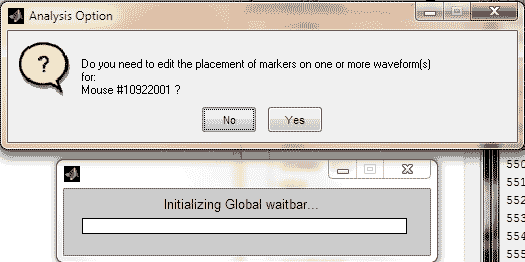

        button2 = questdlg({['Do you need to edit the placement ',...
            'of markers on one or more waveform(s) for:'];
            ['Mouse #', strtok((directory(n).name), '.'), ' ?']},...
            'Analysis Option', 'No', 'Yes', 'No');
        button2 = lower(button2);



        button5 = [];
        while ~strcmp(button5,'no') %keep a loop while user still needs
            %to edit the placement of waveform markers

            %get the range of waveforms to edit markers
            if strcmp(button2, 'yes')
                rangetest = 0;

                while rangetest == 0

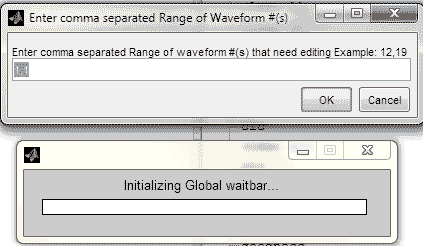

                    prompt = ({['Enter comma separated Range of ',...
                        'waveform #(s) that need editing Example: 12,19']});
                    dlg_title = 'Enter comma separated Range of Waveform #(s)';
                    num_lines = 1;
                    options.Resize='on';
                    options.WindowStyle='normal';
                    options.Interpreter='tex';
                    def = {'1,1'};
                    Range = inputdlg(prompt,dlg_title,num_lines,def,options);



                    range = Range{1};
                    range = str2num(range);
                    if length(range) < 2 || length(range) > 2
                        rangeh = warndlg({'Enter comma separated range';...
                            'For Example:'; '12,19'});
                        uiwait(rangeh);
                        continue
                    elseif range(1) == 0 || range(2) > size(x1,3)
                        rangeh = warndlg(['Range should be from 1 to ',...
                            num2str(size(x1,3))]);
                        uiwait(rangeh);
                        continue
                    elseif range(1) > range(2)
                        rangeh = warndlg('For Range [a,b], b must be > a');
                        uiwait(rangeh);
                    else
                        rangetest = 1;
                    end

                end
            end

            %iterate through the range of waveforms we need to edit
            if strcmp(button2, 'yes')
                %initialize waitbar for current progress
                hh = waitbar(0,'Initializing Current progress waitbar...',...
                    'position',[400 200 275 50]);

                for i = range(1):range(2)
                    pic = figure(1);
                    wave = x1(:,:,i);
                    plot(1:length(wave),wave); hold on;
                    plot(marks(2,1,i), linspace(-1,2), 'b',...
                        marks(2,2,i), linspace(-1,2),...
                        'b', marks(2,3,i), linspace(-1,2), 'b');
                    title({['Mouse #', strtok((directory(n).name), '.')];...
                        ['Waveform #', int2str(i)]});
                    xlabel('sample#');
                    ylabel('Volts(mV)');

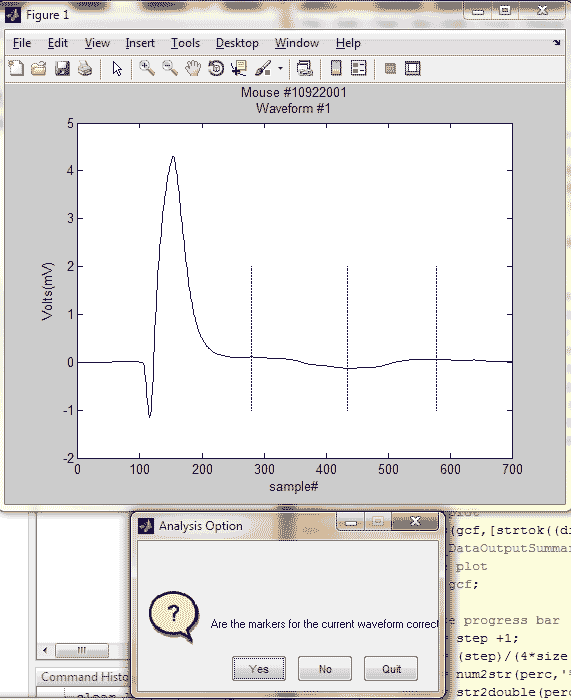

                    button3 = myquestdlg(['Are the markers for the ',...
                        'current waveform correct?'], 'Analysis Option',...
                        'Yes', 'No','Quit','Yes');



                    button3 = lower(button3);

                    if strcmp(button3, 'quit')
                        hold off;
                        break;
                    end

                    if strcmp(button3, 'no')
                        yx = [];

                        if i == range(1) && isempty(button4);

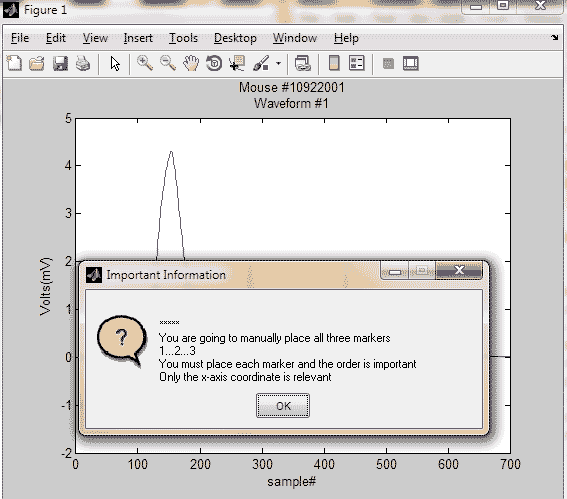

                            button4 = questdlg({'*****';...
                                ['You are going to manually place ',...
                                'all three markers'];...
                                '1...2...3'; ['You must place each marker',...
                                ' and the order is important']; ...
                                'Only the x-axis coordinate is relevant'},...
                                'Important Information', 'OK', 'OK');
                        end

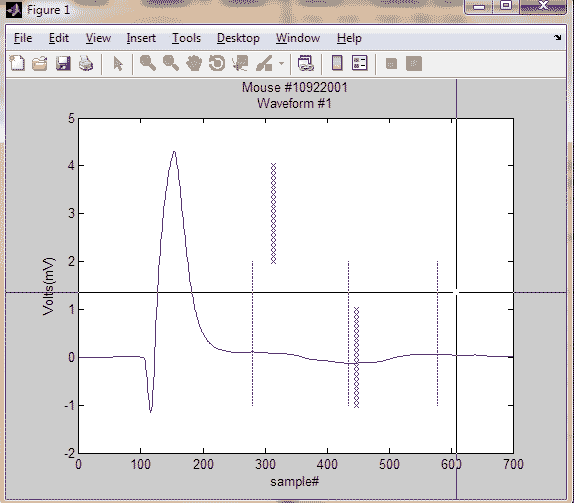

                        but = 0;
                        while but ~= 3

                            [xi,yi,click] = ginput(1);



                            if isempty(click)
                                return;
                            elseif click ~= 1
                                continue;
                            elseif ceil(xi+1) > length(wave)
                                rangeh = warndlg(['Stay in bounds',...
                                    '& reselect preveious marker']);
                                uiwait(rangeh);
                                continue;
                            else
                                but = but+1;
                            end
                            xi = ceil(xi);
                            yi = ceil(yi);
                            plot(xi,yi-1:.1:yi+1,'rx')
                            yx(:,but) = [wave(xi+1);xi];
                        end
                        hold off;
                        marks(:,1,i) = yx(:,1);
                        marks(:,2,i) = yx(:,2);
                        marks(:,3,i) = yx(:,3);

                    end
                    hold off;
                    close(pic);
                    perc = (i-range(1)+1)/(range(2)-range(1)+1);
                    waitbar(perc,hh,sprintf('%.0f%% Current Progress...'...
                        ,perc*100))

                end
                close(hh);
            end
            %ask if the user still needs to edit data

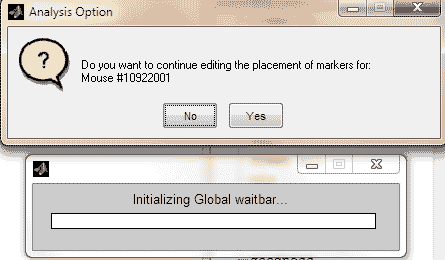

            button5 = questdlg({['Do you want to continue editing ',...
                'the placement of markers for:'];...
                ['Mouse #', strtok((directory(n).name), '.')]},...
                'Analysis Option', 'No', 'Yes', 'No');



            button5 = lower(button5);
        end

    end
    %-------------------------------------------------------------------

Consolidate PS Data Collection

back to top

    %-------------------------------------------------------------------
    %compute relavent calculations that will be used to generate graphs and
    %will also be used to summarize data
    POP = [];
    if size(x,3) >= hf(length(hf)) + 100
        for k = 1:hf(length(hf)) + 100;
            POP(k) = (1/2*(marks(1,1,k) + marks(1,3,k))) - marks(1,2,k);
        end
    else
        for k = 1:size(x,3);
            POP(k) = (1/2*(marks(1,1,k) + marks(1,3,k))) - marks(1,2,k);
        end
    end

    for k = 1:length(hf);
        POP(hf(k)) = 0; %make all high freq. stim. samples zero
        %POP(hf(k)) = nan; %erase all hih freq. stim. samples
    end

    POPave = mean(POP(1:32));
    POPN = 100*(POP/POPave);
    POPNave = mean(POPN(112:121));

    %create a standard sample length for fitting exponential Y to data
    if length(POPN) >= 136;
        POPN_1 = POPN((hf(length(hf)) + 1):136);
    else
        POPN_1 = POPN((hf(length(hf)) + 1):length(POPN));
    end

    %
    Y = POPN_1;
    Y = Y - min(Y); %normalize Y
    fitlimit = length(Y); %determine length of fitY
    %

    %create the time vectors corresponding to the sample rate, 3 samples per minute. One for
    %POPN and one for Y and fitY
    k = 0:1/3:length(POPN)/3; %time vector
    if length(k) ~= length(POPN)
        TIME = k(1:length(POPN));
    end

    if length(k) ~= length(Y)
        k = k(1:length(Y));
    end

    %-------------------------------------------------------------------

Plot POPN vs TIME & Yfit vs Time & Summar Page

back to top

    %-------------------------------------------------------------------

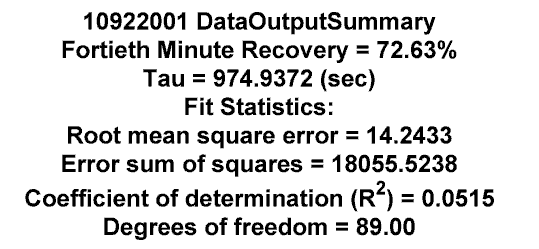

    %create plots of POPN vs TIME |&| Y vs Time with fitY vs Time and
    %create a figure with a summary of data output

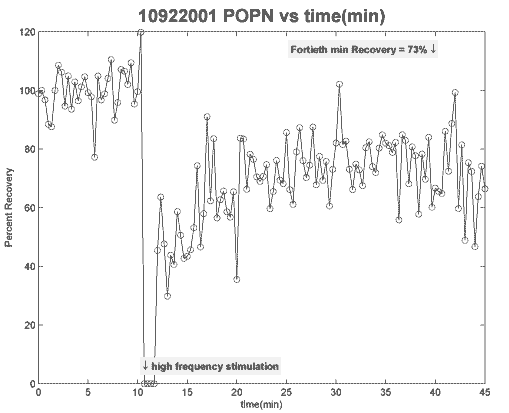

    %plot of POPN vs TIME
    figure(fig+n);
    set(gcf,'name',[strtok((directory(n).name), '.'), ' ',...
        'POPN vs time(min)']);
    plot(TIME, POPN,['b','o']); hold on; plot(TIME, POPN,['k','-']);
    title([strtok((directory(n).name), '.'), ' ',...
        'POPN vs time(min)'], 'fontsize', 18, 'fontweight', 'bold');
    xlabel('time(min)');
    ylabel('Percent Recovery');
    text(ceil(hf(1)*1/3)-.5,.05*diff(ylim)+min(ylim),...
        '\downarrow high frequency stimulation',...
        'fontweight', 'bold', 'horizontalalignment', 'left',...
        'backgroundcolor', 'y');
    text(40,.95*diff(ylim)+min(ylim),['Fortieth min Recovery = '...
        ,num2str(POPNave,'%2.0f'),'% \downarrow'], 'fontweight',...
        'bold', 'horizontalalignment', 'right', 'backgroundcolor', 'y');
    hold off;
    fig = fig + 1;
    %save plot
    saveas(gcf,[strtok((directory(n).name), '.'), '_POPNvstime'],'pdf');
    %close plot
    close gcf;

    %update progress bar
    step = step +1;
    perc = (step)/(4*size(directory,1));
    perc = num2str(perc,'%0.2f');
    perc = str2double(perc);
    waitbar(perc,h,sprintf('%.0f%% Global Progress...',perc*100))

    fitlimit = length(Y);
    button4 = [];

    while strcmp(button4, 'no') ~= 1
        [curvefit,goodness,fitx] = myfitY(Y,'yes',20,'%PS',fig+n); %sample rate =20seconds/sample
        Tao = 1/curvefit.beta; %tau in seconds
        R = abs(goodness.rsquare); %coefficient of determination
        dfe = goodness.dfe; %degrees of freedom
        rmse = goodness.rmse; %root mean square error
        sse = goodness.sse; %sum of squares due to error

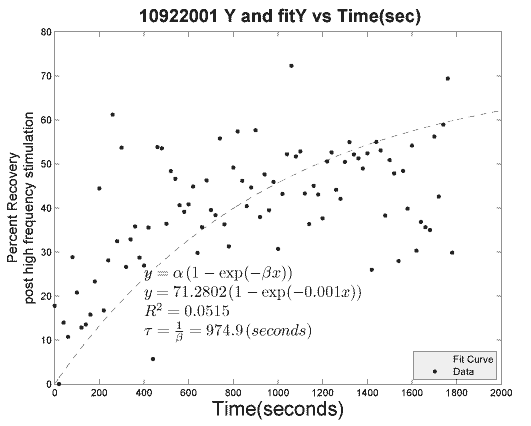

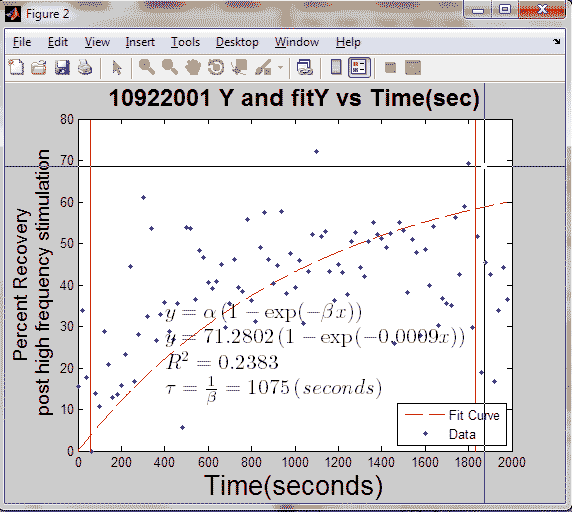

        %plot of Y & fitY vs Time
         set(gca,'nextplot','replacechildren');
         title([strtok((directory(n).name), '.'), ' ',...
             'Y and fitY vs Time(sec)'], 'fontsize', 18, 'fontweight', 'bold');

         ylabel({'Percent Recovery';...
             'post high frequency stimulation'}, 'fontsize', 14);

        %ask if user wants to edit limit of fit curve

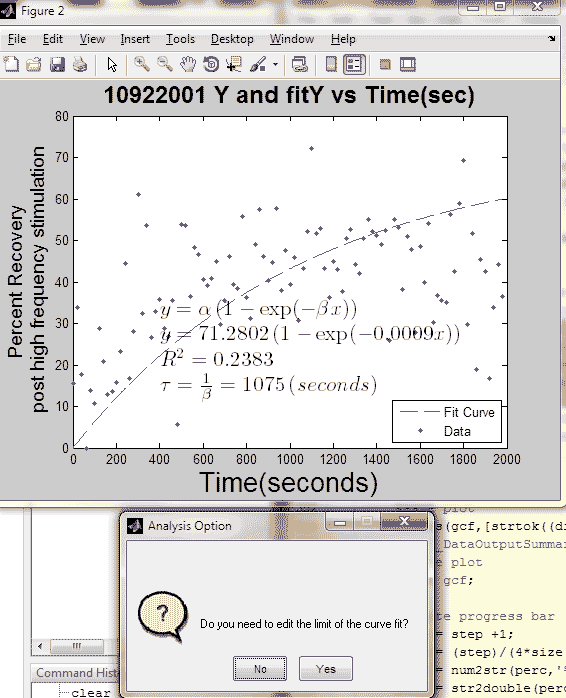

        button4 = myquestdlg(['Do you need to edit the ',...
            'limit of the curve fit?'],...
            'Analysis Option', 'No', 'Yes', 'No');



        button4 = lower(button4);

        %have user define limit of fit curve
        if strcmp(button4, 'yes')



            % use ginput to get user interaction. Continue until terminated with right click
            XCropp = []; %initialize clicked coordinates variable
            click_count = 0; %counts number of times clicked
            lastpoint = 1; %tracks left click, right click and middle click != 1
            pointsY = axis; %assigns axis dimensions
            pointsY = pointsY(3:4); %keeps only mySignal dimensions
            while lastpoint == 1
                [xi,yi,lastpoint] = ginput(1); %ginput calls input routine
                line([xi,xi],pointsY,'color','r') %uses last input and draws vertical line in red
                click_count = click_count+1; %increment clicks
                XCropp(:,click_count) = xi; %save click coordinates, use later to reference new cropped graph
            end

            % select subregion of signal using user input
            startx = round(min(XCropp(:))/20); %convert from seconds to indices
            if startx >= 0.5*length(Y); %keep start if only trimming right half of curve
                startx = 1;
            end
            endx = round(max(XCropp(:))/20); %convert from seconds to indices
            if endx <= 0.5*length(Y); %keep length if only trimming left half of curve
                endx = length(Y);
            end
            Y = Y(startx:endx);
            limitsCrop = [startx,endx]; % save the cropped limits for future use
            hold off;

        end
        fitY = curvefit.alpha*(1 - exp(-curvefit.beta *(fitx)));

    end

    fig = fig + 1;
    %save plot
    saveas(gcf,[strtok((directory(n).name), '.'),...
        '_YandfitYvsTime'],'pdf');
    %close plot
    close gcf;

    %update progress bar
    step = step +1;
    perc = (step)/(4*size(directory,1));
    perc = num2str(perc,'%0.2f');
    perc = str2double(perc);
    waitbar(perc,h,sprintf('%.0f%% Global Progress...',perc*100))
    %data output summary figure
    figure(fig+n);
    set(gcf,'name',[strtok((directory(n).name), '.'), ' ',...
        'Output Data']);
    axis([0,20,0,20]);
    text(9.54,10,{[strtok((directory(n).name), '.'),...
        ' DataOutputSummary'];...
        ['Fortieth Minute Recovery = ',num2str(POPNave, '%2.2f'),'%'];...
        ['Tau = ', num2str(Tao,'%2.4f'), ' (sec)']; 'Fit Statistics:';...
        ['Root mean square error = ',num2str(rmse,'%2.4f')];...
        ['Error sum of squares = ',num2str((sse),'%2.4f')];...
        ['Coefficient of determination (R^2) = ', num2str(R,'%2.4f')];...
        ['Degrees of freedom = ', num2str(dfe,'%2.2f')]},...
        'horizontalalignment', 'center','fontweight', 'bold',...
        'backgroundcolor', 'w', 'verticalalignment', 'middle',...
        'fontsize', 24);
    axis off;
    %save plot
    saveas(gcf,[strtok((directory(n).name), '.'),...
        '_DataOutputSummary'],'pdf');
    %close plot
    close gcf;

    %update progress bar
    step = step +1;
    perc = (step)/(4*size(directory,1));
    perc = num2str(perc,'%0.2f');
    perc = str2double(perc);
    waitbar(perc,h,sprintf('%.0f%% Global Progress...',perc*100))


    %-------------------------------------------------------------------

Pack Data into text file for export

back to top

    %-------------------------------------------------------------------
    %create string array of important data
    stArray = struct;
    stArray(n).name = ['mouse_', strtok((directory(n).name), '.')];
    stArray(n).waveform = x1;
    stArray(n).markers = marks;
    stArray(n).POPN = POPN;
    stArray(n).POPNave = POPNave;
    stArray(n).Y = Y;
    stArray(n).fitY = fitY;
    stArray(n).Time = TIME;

    %reformat string array of data that will be exported to txt file
    w=size(stArray(n).waveform,3);
    l=size(stArray(n).Y,2);
    q=length(stArray(n).POPN);
    stWrite = struct;
    stWrite(n).name = stArray(n).name;
    stWrite(n).waveform = reshape(stArray(n).waveform,[700,w]);
    stWrite(n).markers = reshape(stArray(n).markers(1,:,:),[w,3]);
    stWrite(n).POPN = reshape(stArray(n).POPN,[q,1]);
    stWrite(n).POPNave = stArray(n).POPNave;
    stWrite(n).Y = reshape(stArray(n).Y,[l,1]);
    stWrite(n).fitY = reshape(stArray(n).fitY,[l,1]);
    stWrite(n).Time = reshape(stArray(n).Time,[q,1]);

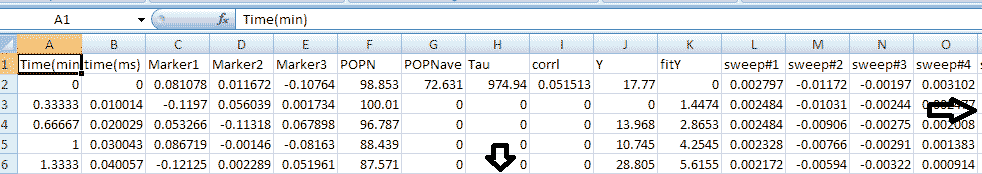

    %create matrix with all data to be written to text file
    A = zeros(700,size(x0,3)+11);
    A(1:length(stWrite(n).Time),1) = stWrite(n).Time;
    A(1:length(time),2) = time;
    A(1:length(stWrite(n).markers),3) = stWrite(n).markers(:,1);
    A(1:length(stWrite(n).markers),4) = stWrite(n).markers(:,2);
    A(1:length(stWrite(n).markers),5) = stWrite(n).markers(:,3);
    A(1:length(stWrite(n).POPN),6) = stWrite(n).POPN;
    A(1,7) = stWrite(n).POPNave;
    A(1,8) = Tao;
    A(1,9) = R;
    A(1:length(stWrite(n).Y),10) = stWrite(n).Y;
    A(1:length(stWrite(n).fitY),11) = stWrite(n).fitY;
    %iterate through the wavefroms and append to output matrix
    for j = 12:size(x0,3)+11
        A(:,j) = stWrite(n).waveform(:,j-11);
    end

    %create header text array
    head = [];
    head1 =  ['Time(min),','time(ms),','Marker1,','Marker2,',...
        'Marker3,','POPN,','POPNave,','Tau,','corrl,','Y,','fitY,'];
    head2 = 'sweep#1,';
    for j = 2:size(x0,3)
        head2 = [head2,'sweep#', num2str(j), ','];
    end

    head = [head1, head2];

    %create format array
    format1 = '%s ';
    for j = 1:size(x0,3)+10
        format1 = [format1, '%s '];
    end
    format1 = [format1, '%s'];

    %open and name and insert header in file for storing output data
    fid = fopen([strtok((directory(n).name), '.'),...
    '_OutputData', '.txt'], 'wt');
    fprintf(fid, format1, head);
    fclose(fid);

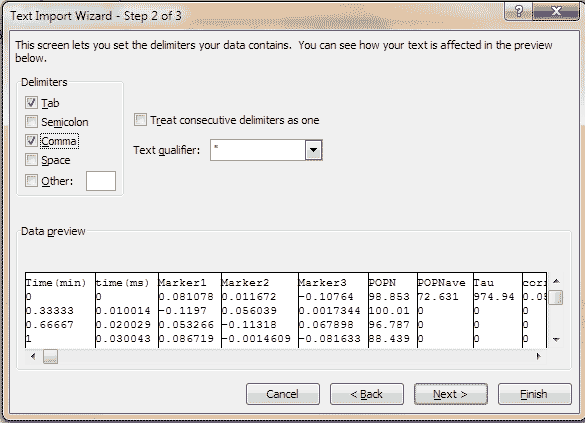

    %append output matrix to file
    dlmwrite([strtok((directory(n).name), '.'), '_OutputData', '.txt'],...
        A, '-append', 'delimiter', ',', 'roffset',1);

    %create text file of all analysis data for %recovery and tau
    if n==1
        fids = fopen('Summary of Output Data.txt', 'wt');
        fprintf(fids, '%s %s %s', ['subjectID#,','%Recovery,','Tau']);
    end

    fprintf(fids, '\n%s %s %s', [[strtok((directory(n).name), '.'),','],...
        [num2str(POPNave, '%2.2f'),','], [num2str(Tao,'%2.2f'),',']]);

    %update progress bar
    step = step +1;
    perc = (step)/(4*size(directory,1));
    perc = num2str(perc,'%0.2f');
    perc = str2double(perc);
    waitbar(perc,h,sprintf('%.0f%% Global Progress...',perc*100))

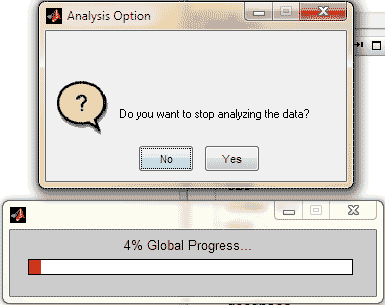

    if n ~= size(directory,1)
        button6 = myquestdlg(['Do you want to stop ',...
            'analyzing the data?'],...
            'Analysis Option', 'No', 'Yes', 'No');
        button6 = lower(button6);



        if strcmp(button6, 'yes')
            break;
            %n = size(directory, 1)+1;
        end
    end

end

%close progress bar
fclose(fids);
close(h);

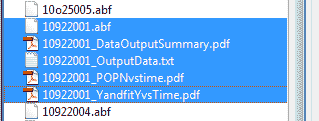

Data Files Generated

back to top

%-------------------------------------------------------------------



% 10922001.abf - file already existed = axon binary file


% ...DataOutputSummary.pdf



% ...OutputData.txt






% ...POPNvstime.pdf



% ...YandfitYvsTime.pdf



%-------------------------------------------------------------------

Published with MATLAB® 7.12
