Contents
INITIALIZE GUI
back to top

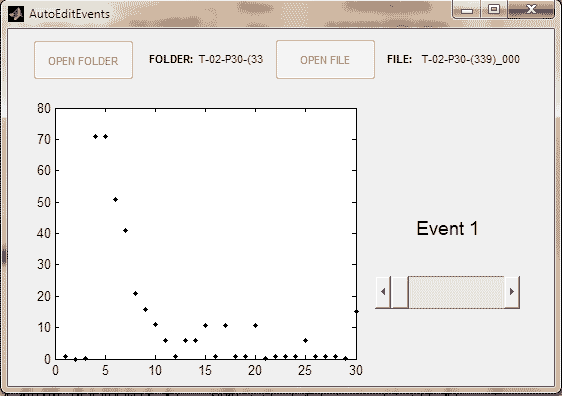

%-------------------------------- function varargout = AutoEditEvents(varargin) % AUTOEDITEVENTS MATLAB code for AutoEditEvents.fig % AUTOEDITEVENTS, by itself, creates a new AUTOEDITEVENTS or raises the existing % singleton*. % % H = AUTOEDITEVENTS returns the handle to a new AUTOEDITEVENTS or the handle to % the existing singleton*. % % AUTOEDITEVENTS('CALLBACK',hObject,eventData,handles,...) calls the local % function named CALLBACK in AUTOEDITEVENTS.M with the given input arguments. % % AUTOEDITEVENTS('Property','Value',...) creates a new AUTOEDITEVENTS or raises the % existing singleton*. Starting from the left, property value pairs are % applied to the GUI before AutoEditEvents_OpeningFcn gets called. An % unrecognized property name or invalid value makes property application % stop. All inputs are passed to AutoEditEvents_OpeningFcn via varargin. % % *See GUI Options on GUIDE's Tools menu. Choose "GUI allows only one % instance to run (singleton)". % % See also: GUIDE, GUIDATA, GUIHANDLES % Edit the above text to modify the response to help AutoEditEvents % Last Modified by GUIDE v2.5 23-Apr-2014 01:14:19 % Begin initialization code - DO NOT EDIT gui_Singleton = 1; gui_State = struct('gui_Name', mfilename, ... 'gui_Singleton', gui_Singleton, ... 'gui_OpeningFcn', @AutoEditEvents_OpeningFcn, ... 'gui_OutputFcn', @AutoEditEvents_OutputFcn, ... 'gui_LayoutFcn', [] , ... 'gui_Callback', []); if nargin && ischar(varargin{1}) gui_State.gui_Callback = str2func(varargin{1}); end if nargout [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:}); else gui_mainfcn(gui_State, varargin{:}); end % End initialization code - DO NOT EDIT % 23-Apr-2014 02:32:00 % --- Executes just before AutoEditEvents is made visible. function AutoEditEvents_OpeningFcn(hObject, eventdata, handles, varargin) % This function has no output args, see OutputFcn. % hObject handle to figure % eventdata reserved - to be defined in a future version of MATLAB % handles structure with handles and user data (see GUIDATA) % varargin command line arguments to AutoEditEvents (see VARARGIN) % Choose default command line output for AutoEditEvents handles.output = hObject; % Update handles structure guidata(hObject, handles); % Load variables y2 = evalin('base','y1'); assignin('base','y2',y2); %write to workspace % Plot the first Event in window myEvents = evalin('base','myEvents'); %load myEvents Eventplot = y2(myEvents(1,1):myEvents(1,3)); %get 1st event to be plotted mintemp = min(Eventplot); Eventplot = Eventplot - mintemp; %translate event to origin plot(handles.axes1,Eventplot,'k.') %update axes1 % Update display of text1 set(handles.text1,'String',['Event ',num2str(1)]) % Initialize slider1 v1 = length(myEvents); mymax = v1; mymin = 1; mystep = [1, 0.2*(mymax-mymin)]*1/(mymax-mymin); %increment slider fractions of #frames: [1/#frame 20%#frames] set(handles.slider1,'Min',mymin); set(handles.slider1,'Max',(mymax)); set(handles.slider1,'SliderStep', mystep); set(handles.slider1,'Value',1); set(handles.slider1,'interruptible','off'); % Fill static text2 box mydirChoose = evalin('base','mydirChoose'); parsemypath = strfind(mydirChoose,'\'); %get all indices where '\' exists myfolder = mydirChoose(parsemypath(end)+1:end); %get all info after last '\' set(handles.text2,'string',myfolder); %info after last '\' is folder name % Fill static text3 box cellname = evalin('base','cellname'); set(handles.text3,'string',cellname); % UIWAIT makes AutoEditEvents wait for user response (see UIRESUME) % uiwait(handles.figure1); % --- Outputs from this function are returned to the command line. function varargout = AutoEditEvents_OutputFcn(hObject, eventdata, handles) % varargout cell array for returning output args (see VARARGOUT); % hObject handle to figure % eventdata reserved - to be defined in a future version of MATLAB % handles structure with handles and user data (see GUIDATA) % Get default command line output from handles structure varargout{1} = handles.output; % --- Executes during object creation, after setting all properties. function slider1_CreateFcn(hObject, eventdata, handles)
% hObject handle to slider1 (see GCBO) % eventdata reserved - to be defined in a future version of MATLAB % handles empty - handles not created until after all CreateFcns called % Hint: slider controls usually have a light gray background. if isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor')) set(hObject,'BackgroundColor',[.9 .9 .9]); end %-------------
CLICK SLIDER
back to top%------------- % Event Selection Slider % --- Executes on slider movement.
function slider1_Callback(hObject, eventdata, handles)
% hObject handle to slider1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'Value') returns position of slider
% get(hObject,'Min') and get(hObject,'Max') to determine range of slider
slider1pos = get(handles.slider1,'Value'); %get slider position
%Update axes1
y2 = evalin('base','y2'); %load filtered signal
myEvents = evalin('base','myEvents'); %load myEvents
myEventsFlag = evalin('base','myEventsFlag'); %load myEventsFlag
% myEventsFilt = evalin('base','myEventsFilt'); %for filtered events
k = slider1pos;
Eventplot = y2(myEvents(k,1):myEvents(k,3)); %get event to be plotted
mintemp = min(Eventplot);
Eventplot = Eventplot - mintemp; %translate signal to origin
if myEventsFlag(k) == 1
plot(handles.axes1,Eventplot,'r.')
else
plot(handles.axes1,Eventplot,'k.') %plot in axes1
end
% plot(handles.axes1,myEventsFilt{k,1},'.') %for filtered events
% Update display of text1
set(handles.text1,'String',['Event ',num2str(k)])
